| Parameters | Ace Deluxe 250 | Ace Scrambler 250 | Ace Café 250 |
|---|---|---|---|
| Engine | |||

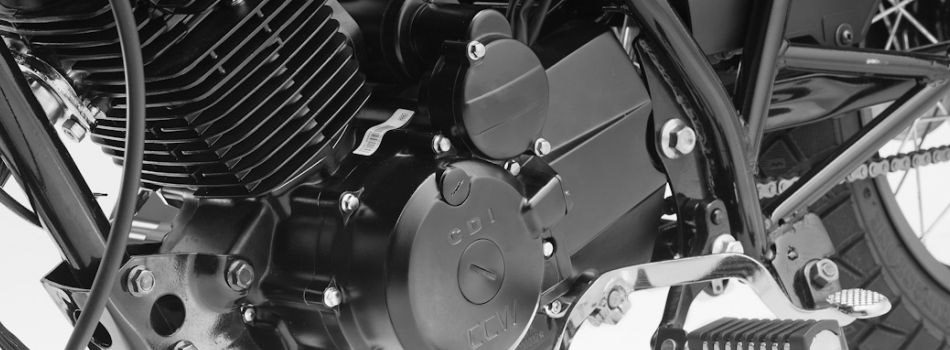

| Type |
Single Cylinder, OHV Air Cooled Engine Single Cylinder, OHV Air Cooled Engine Single Cylinder, OHV Air Cooled Engine |
Single Cylinder, OHV Air Cooled Engine Single Cylinder, OHV Air Cooled Engine Single Cylinder, OHV Air Cooled Engine |
Single Cylinder, OHV Air Cooled Engine Single Cylinder, OHV Air Cooled Engine Single Cylinder, OHV Air Cooled Engine |
| Displacement | 229cc | 229cc | 229cc |
| Maximum Power | 11.5 kW /15.4 HP @7000RPM | 11.5 kW /15.4 HP @7000RPM | 11.5 kW /15.4 HP @7000RPM |
| Maximum Torque | 16.0 N·m @6000 RPM | 16.0 N·m @6000 RPM | 16.0 N·m @6000 RPM |
| Bore X Stroke (mm) | 67 X 65 | 67 X 65 | 67 X 65 |
| Compression Ratio | 9.2 : 1 | 9.2 : 1 | 9.2 : 1 |
| Lubrication | Oil, Pressure & Splash system | Oil, Pressure & Splash system | Oil, Pressure & Splash system |
| Starting | Electric & Kick Start | Electric & Kick Start | Electric & Kick Start |

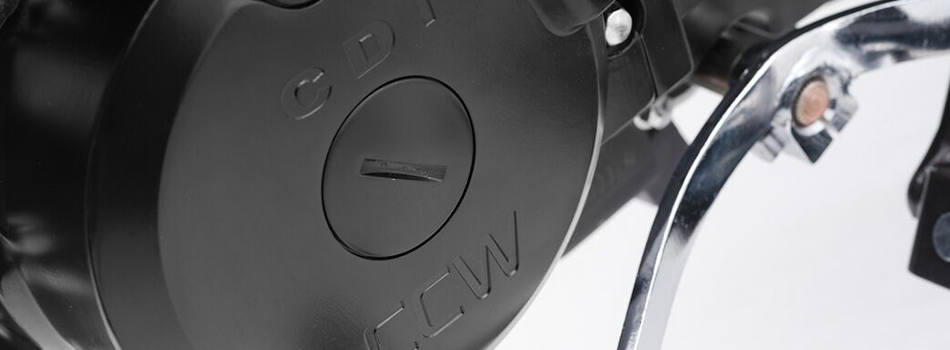

| Ignition | CDI Electronic | CDI Electronic | CDI Electronic |
| Transmission | |||
| Clutch | Wet Multiplate | Wet Multiplate | Wet Multiplate |
| Transmission | 5 Speed, Manual | 5 Speed, Manual | 5 Speed, Manual |
| Gear Shift Pattern | 1- Down, 4-Up | 1- Down, 4-Up | 1- Down, 4-Up |
| Chassis | |||
| Frame |
Square backbone, stressed engine High carbon steelSquare backbone, stressed engine High carbon steel |
Square backbone, stressed engine High carbon steelSquare backbone, stressed engine High carbon steel |
Square backbone, stressed engine High carbon steelSquare backbone, stressed engine High carbon steel |
| Front Suspension | Inverted Telescopic Fork | Telescopic Fork | Inverted Telescopic Fork |
| Rear Suspension |
Twin Hydraulic Shock Absrobers Spring pre-load adjustable 5 stageTwin Hydraulic Shock Absrobers Spring pre-load adjustable 5 stage |
Twin Hydraulic Shock Absrobers Spring pre-load adjustable 5 stageTwin Hydraulic Shock Absrobers Spring pre-load adjustable 5 stage |
Twin Hydraulic Shock Absrobers Gas FilledTwin Hydraulic Shock Absrobers Gas Filled |
| Wheels & Tyres | |||
| Front Tyre | 110/70-17 | 4.10- 18 | 110/70-17 |
| Rear Tyre | 130/70-17 | 4.60- 17 | 130/70-17 |
| Front Wheel |
2.50 X 17" Aluminum rim Spoke wheel2.50 X 17" Aluminum rim Spoke wheel |
2.50 X 18" Aluminum rim Spoke wheel2.50 X 18" Aluminum rim Spoke wheel |
2.50 X 17" Aluminum rim Spoke wheel2.50 X 17" Aluminum rim Spoke wheel |
| Rear Wheel |
3.50 X 17" Aluminum rim Spoke wheel3.50 X 17" Aluminum rim Spoke wheel |
3.50 X 17" Aluminum rim Spoke wheel3.50 X 17" Aluminum rim Spoke wheel |
3.50 X 17" Aluminum rim Spoke wheel3.50 X 17" Aluminum rim Spoke wheel |
| Brakes | |||
| Front |
298mm Disc 2 Piston slide caliper298mm Disc 2 Piston slide caliper |
298mm Disc 2 Piston slide caliper298mm Disc 2 Piston slide caliper |
298mm Disc 2 Piston slide caliper298mm Disc 2 Piston slide caliper |
| Rear |
210mm Disc Single Piston slide caliper210mm Disc Single Piston slide caliper |
210mm Disc Single Piston slide caliper210mm Disc Single Piston slide caliper |
210mm Disc Single Piston slide caliper210mm Disc Single Piston slide caliper |
| Brake Fluid | DOT3/DOT 4 | DOT3/DOT 4 | DOT3/DOT 4 |
| Dimensions (mm) | |||
| Legnth X Width X Height | 2120 X 830 X 1100 | 2100 X 830 X 1100 | 2050 X 750 X 1090 |
| Wheelbase | 1350 | 1350 | 1350 |
| Saddle Height | 760 | 760 | 760 |
| Ground Clearance | 150 | 150 | 150 |
| Kerb Weight | 133Kg | 133Kg | 133Kg |
| Fuel Tank Capacity | 14L | 14L | 14L |
| Electrical | |||
| Batttery | 12V 9Ah | 12V 9Ah | 12V 9Ah |
| Headlamp | 12V 35/35W Halogen (HS1) | 12V 35/35W Halogen (HS1) | 12V 35/35W Halogen (HS1) |
| Tail Lamp | Bulb, 12V 21/5W | Bulb, 12V 21/5W | Bulb, 12V 21/5W |
| Instruments |
Dual round speedometer and tachometer Digital odometer |
Dual round speedometer and tachometer Digital odometer |
Dual round speedometer and tachometer Digital odometer |
